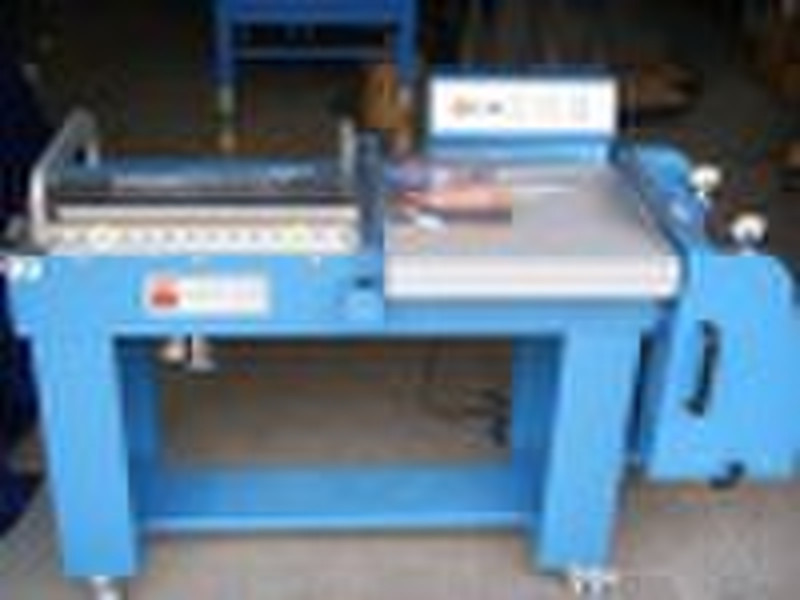

Semi-automatic L Type Film Sealer

Semi-automatic L Bar Sealing MachineModel No. SZ LS5540P Pneumatic driven version to reduce operator’s work intensity FEATURES Works with wide range of center-folded plastic film, e.g. OPP, PP, PE, POF & PVC Low voltage impulse type sealing system with unique electronic control system for accurate sealing temperatures Wide variety sealing area size up to 550 x 400 MM Automatic/ Manual mode interchangeable Pneumatic driven sealing bar with dual-magnetic hold down devices Anti-clamp device to maximize operator’s safety Teflon coated sealing blade ensures neat and strong sealing seam Over-heating protected sealing blade offers no-smoke and non-polluted air environment to operators Heavy gauge steel construction with baking varnish to provide years of consistent production Variable speed conveyor belt to increase production Top mounted & easy access digital display control panel Adjustable film clamp and perforator roller Quick change roll holder system, fully adjustable for different sized rolls of film. Lock caster for easy re-positioning on any working place TECHNICAL DATA Efficiency 10-20 PCS per minute depends on operator’s skill Sealing Size Max. L550 x W400 MM adjustable Power Supply 220 V, 50 HZ Power Consumption 1.5 KW Air Consumption 0.6 MPA Overall Size L1600 x W775 x H1100 MM Net Weight 150 KGS
