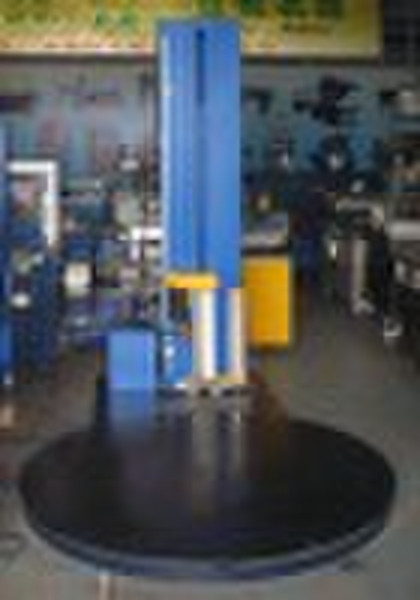

Semi-automatic Pallet Stretch Wrapper

FEATURES Variable carriage up/down speed Film Tension Control adjustment on panel Automatic pallet height detection photocell Electronic soft start/stop for unstable loads Programmable number of wrapping revolutions Variable turntable speed by frequency changer Reinforce wrap allow more wrap on same location Heavy duty double-chain carriage lift, calm and safety Slot in turntable for easy repositioning by fork lift truck Film delivery variable speed by separate DC Drive Motor Motor driven turn-table with load capacity up to 2000 KGS Positive stop of the rotating turntable in fixed position by micro switch OPTIONS Ramp Machine color Pneumatic toppressor Upgraded packing height to 2800 MM Pneumatic film grab and cut off system Increasedturntable diameter to1800MM, 2000MM High profile turntable load capacity to2500-3000 KGS Pre-stretch wrapping function minimize film consumption TECHNICAL DATA Semi-automatic Pallet Stretch Wrapper Model No. SZR SW1650 TurntableLoad Size L200 × W1200 × H2400 MM Turntable Diameter 1650 MM Turntable Height 78 MM TurntableLoad Capacity 2000 KGS Turntable Speed 3-12 RPM Efficiency 20-40 loads per hour based on load size Net Weight 700 KGS Power Supply 220 V, 50 HZ PowerConsumption 1.5 KW Overall Size L2745 × W1650 x H2863 Shipping Size L2850 x W1750 x H1420
